Coolant
Inducer Sockets

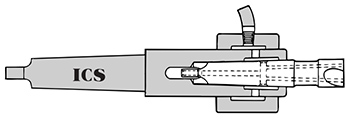

Coolant Inducer Sockets are for adapting taper shank oil hole drills
to morse taper coolant fed adapters. Oil is fed through the side
of shank via internal oil holes within adapter. Adapter is designed
with a slip ring to which the oil line can be connected when drill
is rotating. |
|
|
| ITEM NO. |
MORSE TAPER HOLE & SHANK SIZE |
OVERALL LENGTH |
| CIS #2 |
2 |
6-7/8 |
| CIS #3 |
3 |
8-1/2 |
| CIS #4 |
4 |
10-1/2 |
| CIS #5 |
5 |
13-3/4 |
Coolant Inducer Socket: Reference and Documentation
Note: When
side shank feed is used, set screw must remain in end of tang to block off tang
end oil feed hole. To use tang end feed, simply remove set screw and insert into
end feed holder. Side shank feed hole does not need to be blocked when using
tang and feed.
|
|
| |
|
