DRILL CHUCKS

spacer

Keyless Drill Chucks
Keyless Drill Chucks are high precision, super ball bearing chucks designed for high accuracy use on CNC machining centers in drilling, boring, milling, and counterboring operations. They have a self-tightening feature and can be tightened and released by hand, no key required.
spacer
ITEM NO. CHUCK
MODEL 		CAPACITY
IN. 		CAPACITY
MM 		TAPERED
MOUNT 		LENGTH
OPEN 		LENGTH
CLOSED 		DIA. WT. (lbs.)
DC-06/J1 6/J1 0-1/4 0-6 1JT 2.40 2.67 1.34 .85
DC-10/J2 10/J2 1/64-3/8 .5-10 2JT 3.15 3.27 1.57 1.10
DC-10/J33   10/J33 1/64-3/8 .5-10 33JT 3.15 3.27 1.57 1.10
DC-13/J2 13/J2 1/32-1/2 1-13 2JT 3.54 3.70 1.81 1.63
DC-13/J33 13/J33 1/32-1/2 1-13 33JT 3.54 3.70 1.81 1.63
DC-13/J6 13/J6 1/32-1/2 1-13 6JT 3.54 3.70 1.81 1.63
DC-16/J3 16/J3 1/8-5/8 3-16 3JT 4.06 4.25 2.20 3.09
DC-16/J6 16/J6 1/8-5/8 3-16 6JT 4.33 4.53 2.20 3.31
spacer

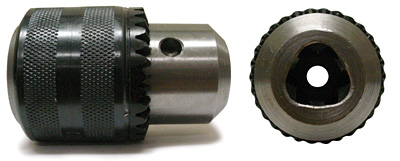

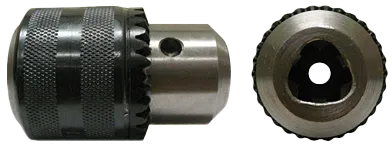

Key Type Drill Chucks
Key Type (Medium Duty) Drill Chucks are industrial quality chucks designed for high accuracy use on power tools, bench drilling machines, and wood working machinery. All parts are hardened for maximum tool life. Chucks are provided with key.
spacer
ITEM NO. SIZE CAPACITY IN. CAPACITY MM MOUNT USES WT. (lbs.)
DC-KM10-024 3/8 0-3/8 0-10 3/8-24 K30 .48
DC-KM10-032 3/8 0-3/8 0-10 1/2-20 K30 .48
DC-KM10-06JT   3/8 0-3/8 0-10 6JT K3 .48
DC-KM13-032 1/2 1/64-1/2 .5-13 1/2-20 K32 .80
DC-KM13-06JT 1/2 1/64-1/2 .5-13 6JT K3 .80
DC-KM16-040 5/8 1/64-5/8 .5-16 5/8-16 K32 1.30
