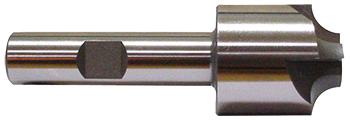

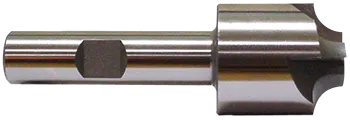

Corner Rounding End Mills page 280
Corner Rounding Style End Mills are designed for milling convex (male) quarter round edges on most metals. Form relieved cutters have side and radial clearance and can be sharpened by grinding the face of the teeth without changing their form.
| RADIUS DIA. |
SHANK DIA. |
CUTTER DIA. |
OVERALL LENGTH |
NO. OF FLUTES |
|---|---|---|---|---|
| 1/16 | 3/8 | 7/16 | 2-1/2 | 4 |
| 3/32 | 3/8 | 1/2 | 2-1/2 | 4 |
| 1/8 | 1/2 | 5/8 | 3 | 4 |
| 5/32 | 1/2 | 3/4 | 3 | 4 |
| 3/16 | 1/2 | 7/8 | 3 | 4 |
| 3/16 | 3/4 | 7/8 | 3-1/8 | 4 |
| 1/4 | 1/2 | 1 | 3 | 4 |
| 1/4 | 3/4 | 1 | 3-1/4 | 4 |
| 9/32 | 5/8 | 1 | 3 | 4 |
| 5/16 | 1/2 | 1-1/8 | 3-1/4 | 4 |
| 5/16 | 5/8 | 1-1/8 | 3-1/2 | 4 |
| 5/16 | 3/4 | 1-1/8 | 3-1/4 | 4 |
| 5/16 | 7/8 | 1-1/8 | 3-1/2 | 4 |
| 3/8 | 1/2 | 1-1/4 | 3-1/2 | 4 |
| 3/8 | 3/4 | 1-1/4 | 3-1/2 | 4 |
| 3/8 | 7/8 | 1-1/4 | 3-3/4 | 4 |
| 7/16 | 3/4 | 1-3/8 | 3-3/4 | 4 |
| 7/16 | 1 | 1-3/8 | 4 | 4 |
| 1/2 | 3/4 | 1-1/2 | 3-7/8 | 4 |
| 1/2 | 1 | 1-1/2 | 4-1/8 | 4 |
| 5/8 | 3/4 | 1-5/8 | 4 | 4 |
| 5/8 | 1 | 1-5/8 | 4 | 4 |
| 3/4 | 3/4 | 1-7/8 | 4 | 4 |
| 3/4 | 1 | 1-7/8 | 4 | 4 |
