MULTI-SPUR PIPE BITS

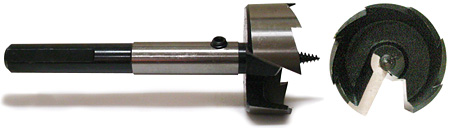

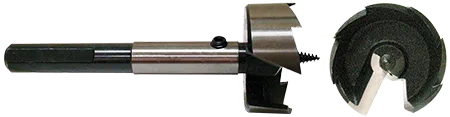

Multi-Spur Pipe Bits
Multi-Spur Pipe Bits are made of Special Tool Steel. Beveled saw teeth allow smooth boring of holes. Inside cutter pushes chips to rear of bit, allowing deep holes to be bored without clogging. Ideal for plumbing and electrical work.

SIZE	OVERALL LENGTH	SHANK
2-1/4	6	1/2
2-3/8	6	1/2
2-1/2	6	1/2
2-5/8	6	1/2
2-3/4	6	1/2
2-7/8	6	1/2
3	6	1/2
3-1/8	6	1/2
3-1/4	6	1/2
3-1/2	6	1/2
3-9/16	6	1/2
3-5/8	6	1/2
3-11/16	6	1/2
3-3/4	6	1/2
3-7/8	6	1/2

4" LENGTH
SIZE	APPLICATIONS
1	-
1-1/8	3/4" Pipe Entrance
1-1/4	-
1-3/8	1" Pipe Entrance
1-1/2	1-3/8" Tubing
1-3/4	1-1/4" Pipe Entrance
2	1-1/2" Pipe Entrance
2-1/8	Door Locks
2-1/4	2" Tubing
2-9/16	2" Pipe Entrance
3	2-1/2" Pipe Entrance
3-5/8	3" Pipe Entrance
4-5/8	4" Pipe Entrance

Multi-Spur Pipe Bit Sets
Multi-Spur Pipe Bit Sets are available in the following quantities:

4pc - 1-3/8, 1-1/2, 2-1/8, 2-9/16
8pc - 1, 1-1/8, 1-1/4, 1-3/8, 1-1/2, 1-3/4, 2, 2-1/8

Screw Point Pilot Drills
Replacement Screw Point Pilot Drills for Multi-Spur Pipe Bits.

SIZE	FITS	STYLE
3/16	1-3/8 - 1-1/2	Double End
1/4	1-3/4 - 2-9/16	Double End
3/8	3-5/8	Single End
