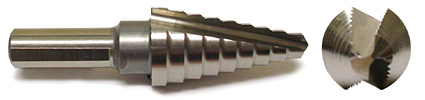

stepped cone drill - side and front view
High Speed Steel 2 Flute Stepped Cone Drills are designed for drilling and enlarging perfectly round holes from 1/8" to 1-1/2" diameter in thin materials up to 1/8" thick. No pilot hole is required. Self-starting split point prevents walking. Each hole is automatically deburred by the cutting edge of the next larger size. Ideal for drilling sheet metal, non-ferrous metals, plastics, PVC, laminates, or wood. They are also known as Step Drill Bits or Step Drills.
Stepped Cone - HSS page 118
Stepped Cone - TiN Coated page 118
Stepped Cone - 1/4" Quick Change Hex Shank page 118A
Stepped Cone - 1/4" Quick Change Hex Shank - TiN Coated page 118A
Tapered Cone - HSS page 118
Conical (no steps), two flute construction drills burn-free holes from 1/8" to 1-1/8" diameter in metal, plastic, or wood. A washer can be placed on cone to act as a simple stop-gauge. Ideal for sheet metal and hole enlarging work.
